Android renders user interface (UI) by generating a frame from your app and displaying it on the screen. To ensure that a user’s interaction with your app is smooth, your app should render each frame under the refresh rate that is determined by each device–for example, Pixel 6 allows rendering 90 frames per second at the maximum, which means that each frame needs to be rendered under 11ms. If your app suffers from slow UI rendering, the Android framework is forced to skip frames. When this happens, the user perceives unexpected and distracting visual glitches, also known as jank.

There are several sources of jank such as janks caused by applications or janks caused by SurfaceFlinger. This article focuses on jank caused by applications, and the tools Android Studio offers to spot and fix them, by inspecting a live app and opening recorded traces to solve performance problems in your app.

Note: This article shows the updated jank detection UI starting from Android Studio Chipmunk, when used with physical devices or Android emulators running Android 12 (API level 31) or higher.

Recording a trace from live interactions

The following example uses the JankStatsSample application in the GitHub performance samples repository to showcase how to spot the cause of the jank using CPU profiler.

performance-samples/JankStatsSample at main · android/performance-samples

This sample project shows how to use the JankStats library. It includes multiple simple sample activities…

github.com

  1. Open the JankStatsSample and run the application

2. Open the Profiler tab at the bottom of the Android Studio

Profiler tab at the bottom of Android Studio

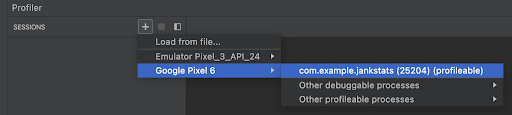

3. Start a new profiling session by clicking the + icon in the left pane of the Profiler, then select the device name and the application process, against which you want to run the profiler.

Image for selecting the profileable process

Note: Although it’s possible to profile debuggable apps, it’s recommended to profile profileable apps because profiling debuggable apps adds significant performance cost as a side effect. See the documentation about Profileable applications for more details.

4. Click the CPU row

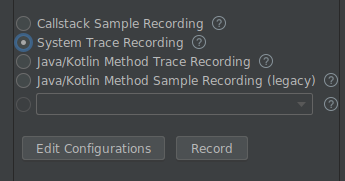

5. Select System Trace Recording and click Record

Screenshot of the CPU profiler selecting the system trace recording from the tracing options

6. Interact with the application to gather some data then click the Stop button.

Then Android Studio will show Display section with the janky frames visible

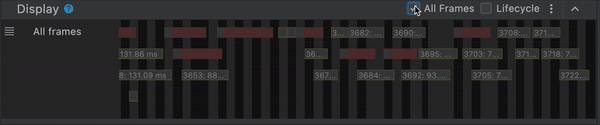

or by checking the All Frames checkbox, you can toggle if the trace shows the non-janky frames as well.

You can see the detailed frame information by hovering the mouse tip on each frame or by clicking it. There are three types of frames if you check the All Frames checkbox.

  • Green frame
    A normal frame that isn’t considered as a jank
Screeshot of an example of the green frame
  • Red frame
    A frame that was considered as a jank because the app process ran longer than expected and it missed the deadline of the expected duration of the frame. From the app developer’s point of view, actionable frames are usually red frames.
Screenshot of an example of the red frame
  • Yellow frame

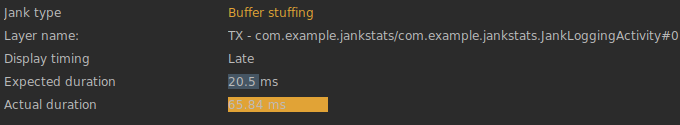

    A frame that was considered as buffer stuffing, which means the app keeps sending the frames to the system before the previous frame is presented. This is usually caused by the previous frame being janky and there isn’t much app developers can do about the yellow frames.
Screenshot of an example of the yellow frame

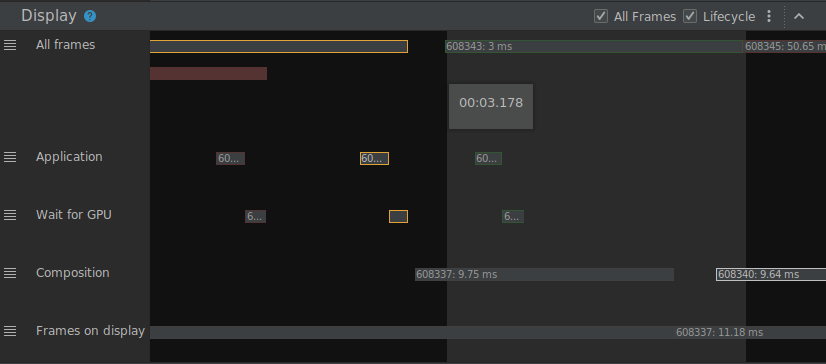

By checking the Lifecycle checkbox, you can toggle showing/hiding four additional tracks.

Screenshot of an tracing with the lifecycle checkbox checked

These four tracks:

  • Application
  • Wait for GPU
  • Composition
  • Frames on display

have been available since Android Studio Bumblebee. You can see the detailed explanation of each track in the documentation.

Inspecting janky frames

Now, let’s see how you can diagnose what causes the janky frames in your app.

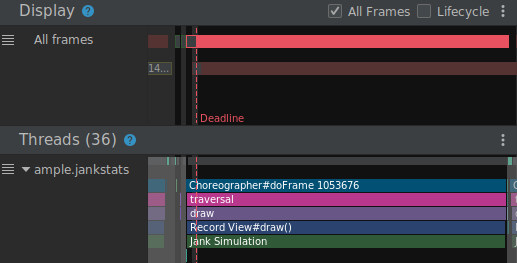

  1. Select a janky frame in the Janky frames track, then the corresponding lifecycle data is highlighted in the Display section and the corresponding thread data is highlighted in the Threads section.
Screenshot of selecting the janky frame with the relevant tracings in the corresponding thread

The dashed Deadline represents the deadline. When a frame’s duration exceeds that deadline, the frame is considered as janky.

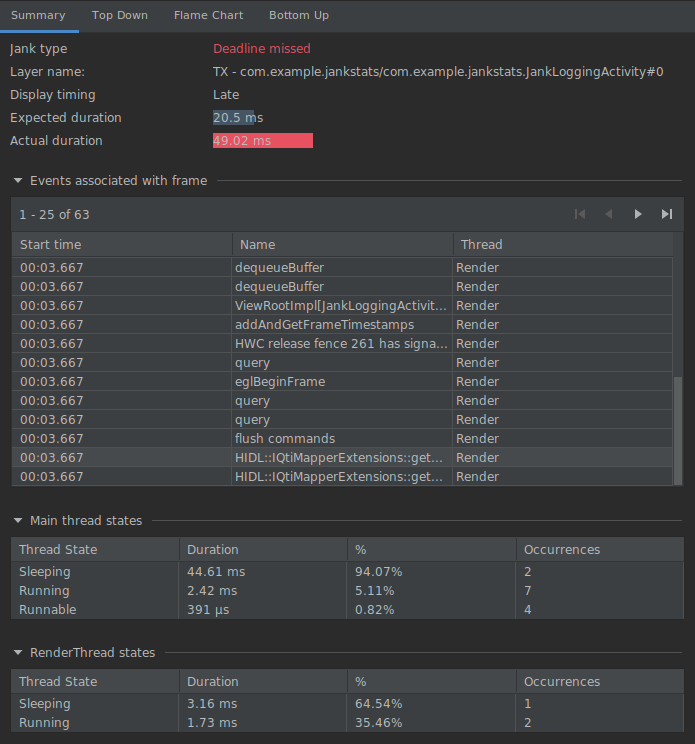

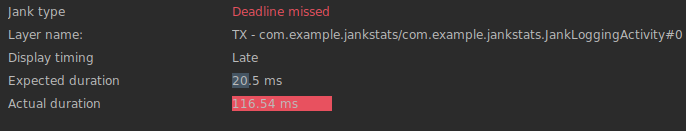

You can also see the detailed analysis at the right pane of Android Studio.

Screenshot of the detailed analysis of the janky frame

2. If you look at the corresponding trace section in the main thread of the application, you can see a large amount of time is spent in `View#draw`.

Also, you can see the large amount of thread state is sleeping if you look at the main thread state in the detailed analysis pane.

Bottom of the detailed analysis pane. That describes the large amount of time is spent for sleep

3. Let’s look at the code where View#draw is called.
You can spot the View#onDraw is overridden in the JankyView class.

override fun onDraw(canvas: Canvas) {
  simulateJank()
  super.onDraw(canvas)
}

The simulateJank method that is called from onDraw is defined as follows,

fun simulateJank(
    jankProbability: Double = 0.3,
    extremeJankProbability: Double = 0.02
) {
    val probability = nextFloat()

    if (probability > 1 - jankProbability) {
        val delay = if (probability > 1 - extremeJankProbability) {
            nextLong(500, 700)
        } else {
            nextLong(32, 82)
        }

        try {
            // Make jank easier to spot in the profiler through tracing.
            trace("Jank Simulation") {
                Thread.sleep(delay)
            }
        } catch (e: Exception) {
        }
    }
}

Then you can spot Thread.sleep is called inside the simulateJank method. It may be obvious because the JankStatsSample application is created to simulate janks on purpose, but the important thing is that you are able to spot the actual code by looking from the overview of the janky frames to more detailed analysis.

Note: Although it’s obvious that calling <em class="lh">Thread.sleep</em> is problematic in this example, in reality you will need to make more difficult decisions when optimizing your real application code. The Microbenchmark library can help you measure if the changes that you’re making are having the desired effect.

Note: The system tracing shows various sections captured by platform code and libraries that are part of your app. Oftentimes it won’t have enough information. To improve that, add custom trace, one of the ways of adding custom trace is by using the <em class="lh">trace(“MySection”) { /* this will be in the trace */ }</em> in the AndroidX Tracing library.
For example,
<em class="lh">trace(“Jank Simulation”) { … }</em> in this example is shown in the corresponding thread’s trace section.

For more information about reading traces and adding custom ones, visit Overview of system tracing.

4. Let’s change the code to not call the simulateJank method in onDraw, then see if the janky frames are still observed.

override fun onDraw(canvas: Canvas) {
  // simulateJank()
  super.onDraw(canvas)
}

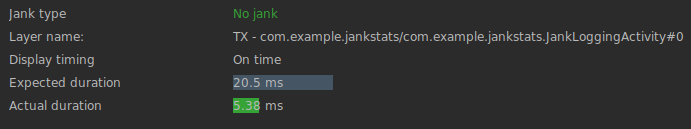

This time, when you rerun the system trace recording, you will see no janky frames after interacting with the application!

Screenshot of the profiler without jank frames after fixing the code

Loading a saved trace

Alternatively, you can also save the trace and load it later by following steps below. Saving and loading the trace is useful in that you can compare the different versions of traces, share it with other people.

Note: You can also obtain the system traces by using the Macrobenchmark library.

  1. Follow the same steps from 1 to 6 as for recording a trace from live interactions.

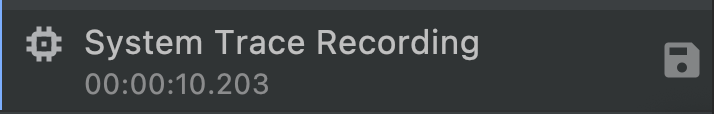

  2. Export the recording by clicking the save icon
Screenshot of the icon to start the tracing

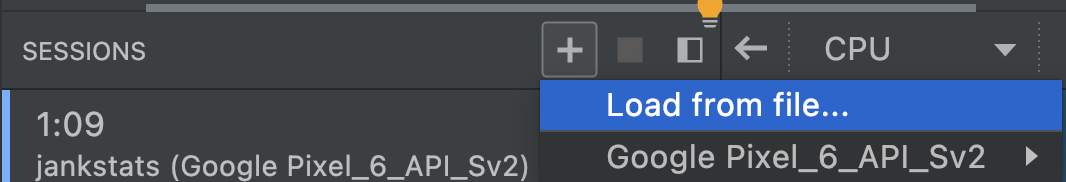

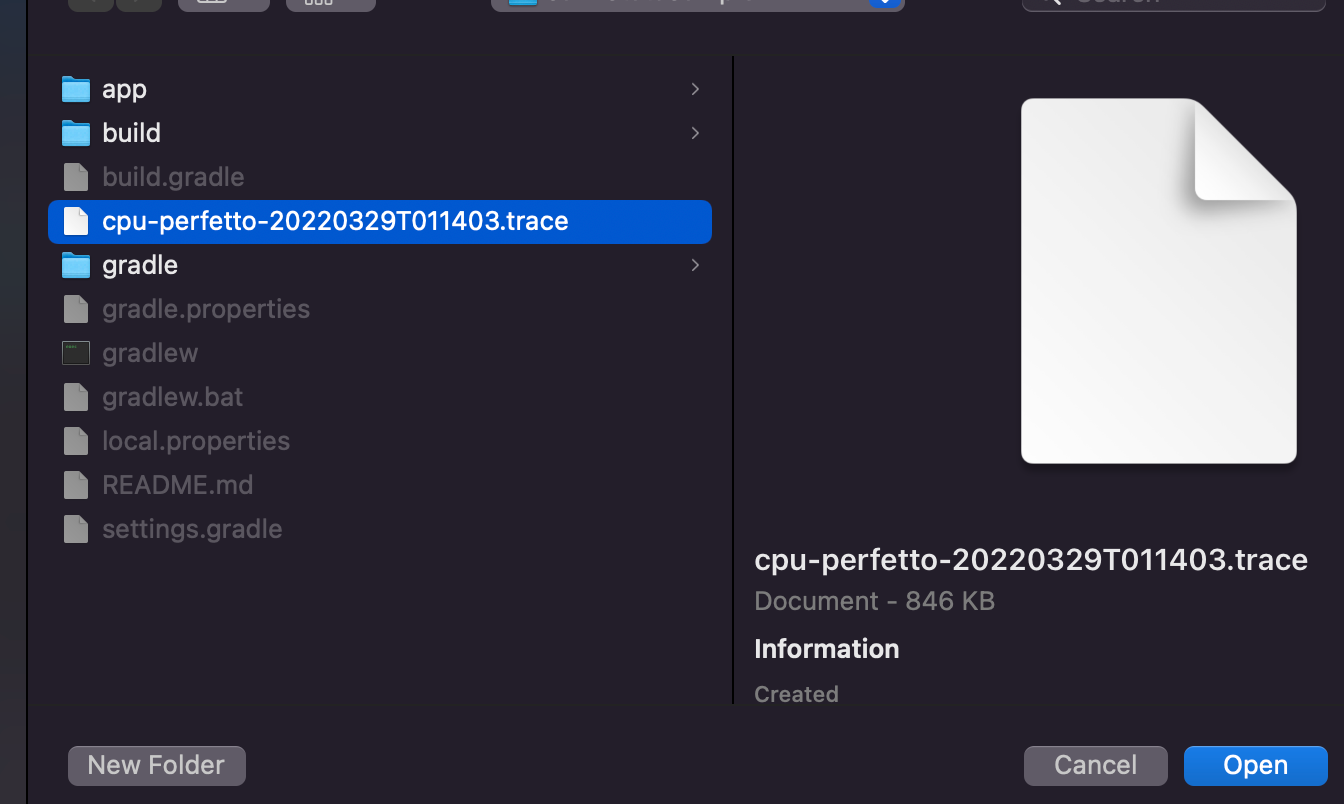

3. Then later, load the saved system trace recording by navigating to + -> Load from file… and select the saved file exported in the previous step

Screenshot of selecing the load from file menu
Screenshot of the file explorer selecting the saved trace

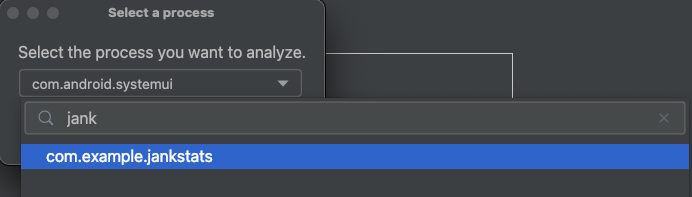

4. Select the process you want to analyze. After the process list dropdown is shown, you can start typing the part of the process name to quickly locate it.

Then you can load the saved trace and see the janky frames same as recording from the live interactions.

Summary

That’s it! Starting with Android Studio Chipmunk, you are able to see more precise profiling data that helps you to spot your application’s janks.

To learn more about the usage of CPU profiler, make sure to check out the documentation and help us improve our tools by navigating to `Help -> Submit Feedback` in Android Studio.

You can also check out the What’s new in app performance talk at Google I/O that covers a broad range of performance topics including avoiding janky frames.

And if you want to check out our new library for detecting and reporting jank in your production apps running on user’s devices, head on to documentation for JankStats!
